• Category 1ASAE S217.12 standard, 3-point mount for 15-30 PTO HP hydrostatic tractors
• Maintenance free PTO shaft drive with automatic slip clutch for overload protection
• 14" discharge auger
• 30" & 36" digging depth available to fit most applications
• 38,000 lb 1.654" anti back flex chain for tooth patte

Watch Our Video

• 24”, 30”, Or 36” Dig Depths
• 6” To 12” Wide Chains: Standard Tooth, Shark Style Tooth, or Combo Chains Available
• Offset Footing Model Available

• Exclusive planetary drive system
• 24”, 30”, 36”, & 48” digging depth available to fit most applications
• Two motor options to match the flow of many skid-steer loaders
• Fixed-length booms available – featuring a spring-loaded, self adjusting idler with full rock guards
• Multiple chain styles available: cupped tooth, aggressive shark or 70/30 Combo
• 615F offers exclusive full offset digging with 12” teeth
• 2 year warranty

Category I 3-Point Hitch for 20-45 PTO Tractors

• Chain reduction drive system
• Boom lengths from 30" - 60"
• Chain widths from 6" - 12"
• Various chain type options
• Fully assembled
• 2 year warranty

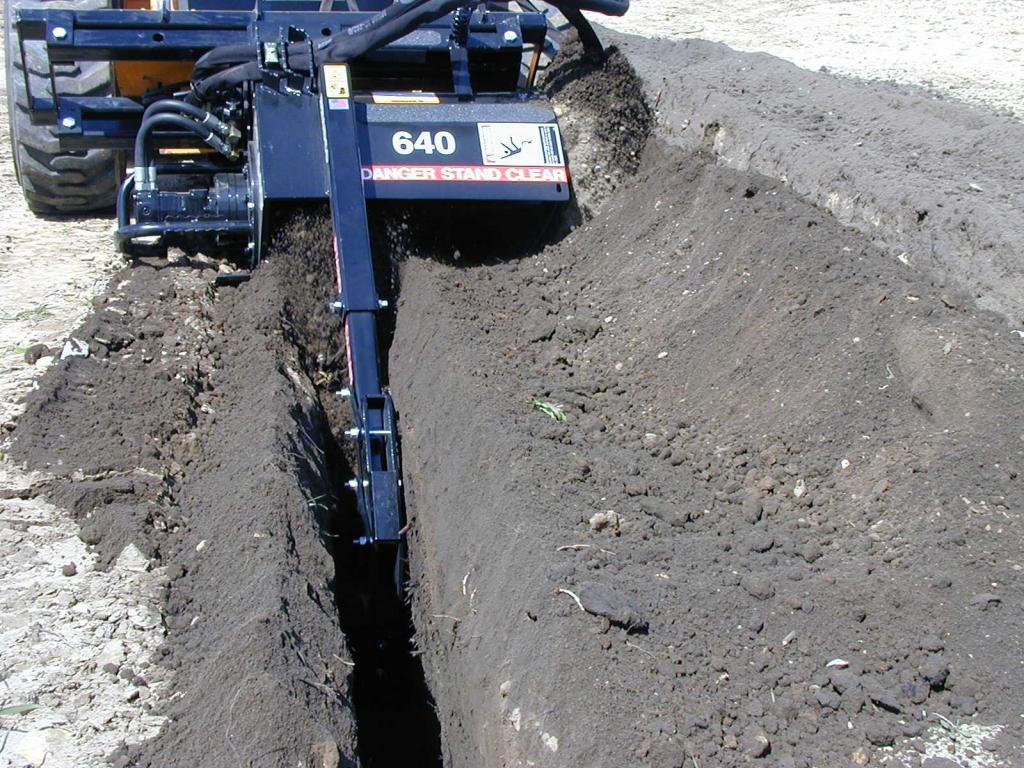

Standard Flow Planetary Drive for Skid Steers Key Features and Benefits

• All new planetary drive heavy duty trencher with two standard flow options to fit most standard flow skid-steers
• 3300 psi. motors 2 standard flow and 2 high flow can be easily changed on a stock 640 to meet the full range of your skid-steer line, less inventory is required
• 30", 36", 42", and 48" digging depth available to fit most applications
• 6" to 12" chain widths to match your jobs requirements.
• Boom features a spring-loaded, end idler with full rock guards for better chain retention and adjustment; constant tention.
• Heavy-duty crumber and safety bar standard
• 640 is equipped with two position side-shift capabilities with an infinite position hydraulic side-shift option.

Standard Flow Chain Reduction for Skid Steers

Key Features and Benifits

• Attaches to skid-steer loaders and is equipped with two position side shift capabilities with an infinite position hydraulic side shift option.
• Double standard 2" anti-back-flex chain for tooth pattern versatility.
• High torque hydraulic motor for maximum digging poser and heavy duty chain reduction drive system to amplify the torque to the cutting chain.
• Maintenance free sealed idler bearing.
• Replacable headshaft driven auger for spoil removal.
• Boom lenghts available from 30" to 48" with 6" to 12" chain widths to match your job's specifications.
